Description

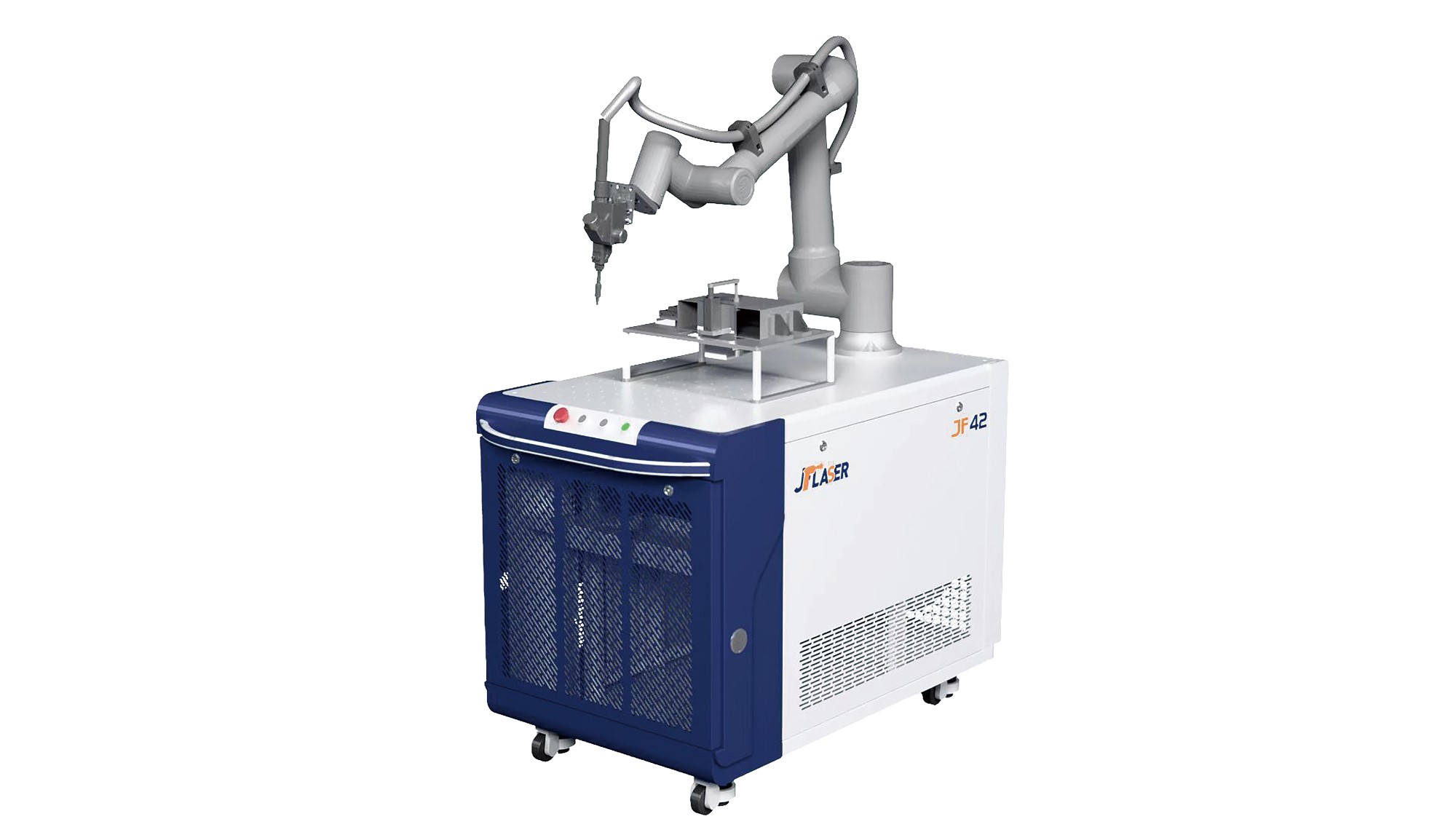

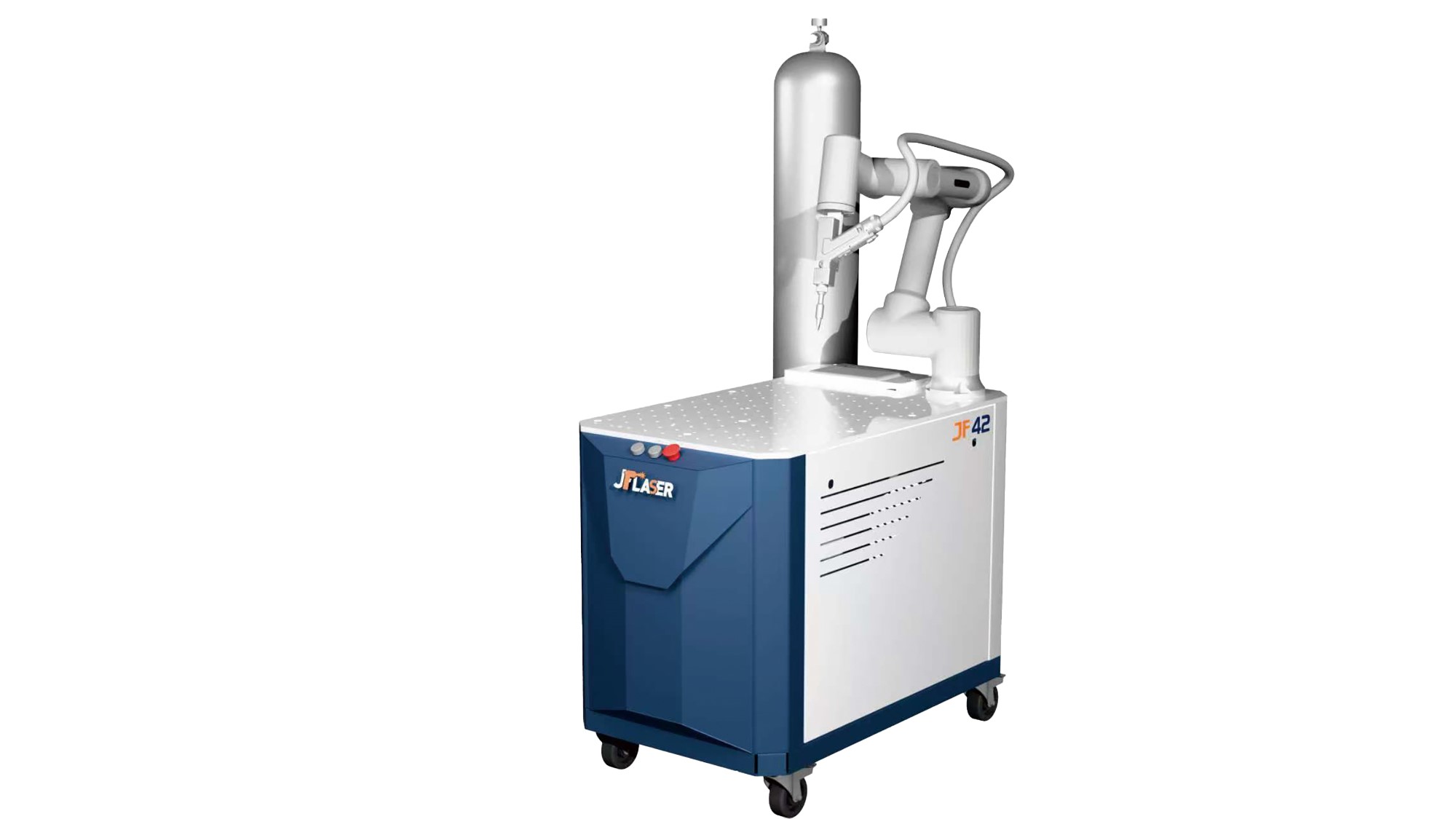

| Model | Unit | GT42-W1200 | GT32-W1500 | GT32-W2000 | GT32-W3000 |
| Operating Voltage | V | 1PH AC220V±5% | 3PH AC380V±10% | ||
| Frequency | Hz | 50/60 | |||
| Power | W | 1200 | 1500 | 2000 | 3000 |
| Fiber Length | M | 10 | |||
| Laser Output Connector | / | QBH | |||
| Central Wavelength | NM | 1080±5 | |||
| Cooling Method | / | Water Cooling | |||
| 5KG water tank Cap. | L | 13 | |||
| 10KG water tank Cap. | L | 13 | |||
| Load | kg | 5kg/10kg | |||
| Working Radius | mm | 900/1300 | |||
| Repeat positioning accuracy | mm | ±0.02/±0.05 | |||
| Degrees of freedom | / | 6 rotating joints | |||
| Programming | / |
Teach pendant graphical programming,Handheld PAD programming,Lua script programming,C/C++ programming,Python programming,SDK library,ROS system supported |
|||
| Maximum speed | M/S | 2.5 / 3 | |||
| Joint motion Range | ° | ±360° | |||
| Control box size | mm | 420*260*215 | |||
| Control box I/O port | / | 16-channel digital input,16-channel digital output,4-channel analog input,4-channel analog output | |||
| Power supply | / | 100AVC-240AVC,50/60Hz | |||
| IP Rating | / | IP54 | |||
| Communication interface | / | TCP/IP100Mbit, ModbusTCP,485communication | |||
| HMC | / | Collision detection,Drag-to-teach / Hand guiding,Safety zone setting,48V power supply for the robot body | |||
| Safety Certification | / | CE ,KCs ,5safety configurations,in accordance with EN ISO 13849-1-2008、PLD | |||
| Working Temperature | ℃ | - 10~ + 60 | |||
| Humidity | % | ≤70%@40℃；≤90%@20℃ | |||
| 5KG Size | mm | 1110*652*830 | |||
| 5KG machine weight | Kg | 230 | |||
| 10KG Size | mm | 1340*780*960 | |||
| 10KG machine weight | Kg | 290 | |||
| Welding Materials | Carbon steel, Aluminum, Galvanized sheet, Stainless steel, etc | ||||
| Note: Welding parameters are for reference only. Actual parameters may deviate from the above values due to variations in welding wire diameter, weld seam width and other environmental and process factors. | |||||
