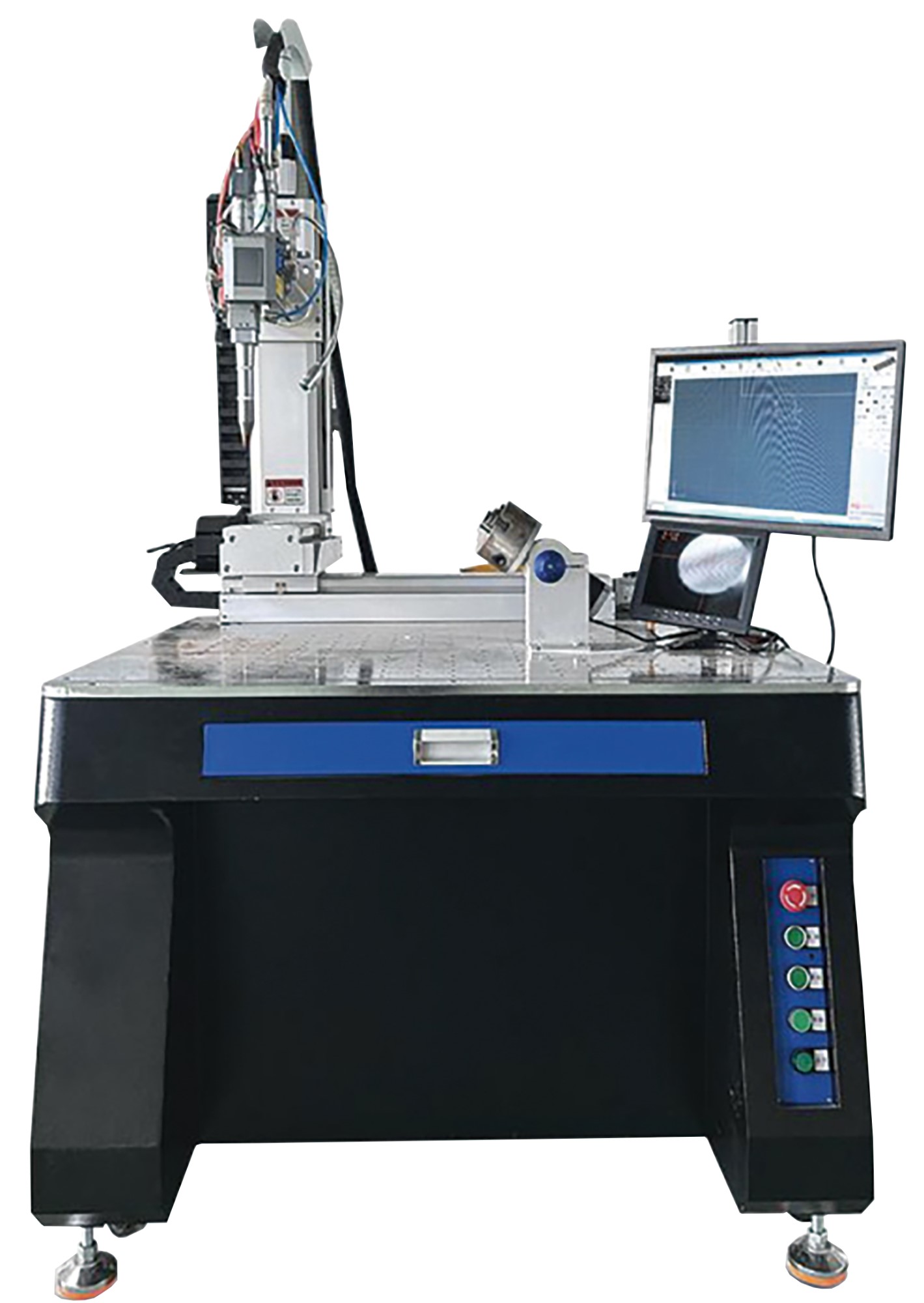

Description
| Model | Unit | GT82-P1500 | GT82-P2000 | GT82-P3000 |
| Platform Dimensions | mm | 1000*880*760 | 1300*970*760 | 1600*1000*760 |
| Module stroke | mm | X500/Y300/Z300 | X800/Y300/Z500 | X1200/Y400/Z500 |
| Power | W | 1500 | 2000 | 3000 |
| Operating Voltage | V | 1PH AC220V±5% | 3PH AC380V±10% | |
| Frequency | Hz | 50/60 | ||
| Module operating seed | m/min | X8/Y8/Z6 | ||
| Repeat position accuracy | mm | ± 0.1 | ||
| Laser Output Connector | / | QBH | ||
| Axis Count | / | 3/4/5/6 | ||
| Central Wavelength | NM | 1080±5 | ||
| Cooling Method | / | Water Cooled | ||
| Weld Seam Requirement | MM | ≤0.5 | ||
| QBH fiber diameter | um | 20/30/50 | ||
| Operating Method | / | Pulse/CW | ||
| Working Temperature | ℃ | 0~ + 40 | ||
| Positioning Mode | / | Red light indicator CCD inspection | ||
| Humidity | % | ≤70%@40℃；≤90%@20℃ | ||
| Working Shielding Gas | / | Argon/Nitrogen | ||
| Welding Wire Diameter | MM | 0.8,1.0,1.2,1.6,2.0 | ||
| Dimensions | MM | 1000*880*760 | 1300*970*760 | 1600*1000*760 |
| Weight | KG | 250 | 330 | 600 |
| Welding Materials | Carbon steel, Aluminum, Galvanized sheet, Stainless steel, etc | |||
| Note: Welding parameters are for reference only. Actual parameters may deviate from the above values due to variations in welding wire diameter, weld seam width and other environmental and process factors. | ||||
